From concept to production-ready CAD.
Custom 3D modeling for enclosures, prototypes, mechanical parts, and industrial assemblies. From initial sketch to manufacturing-ready technical drawings.

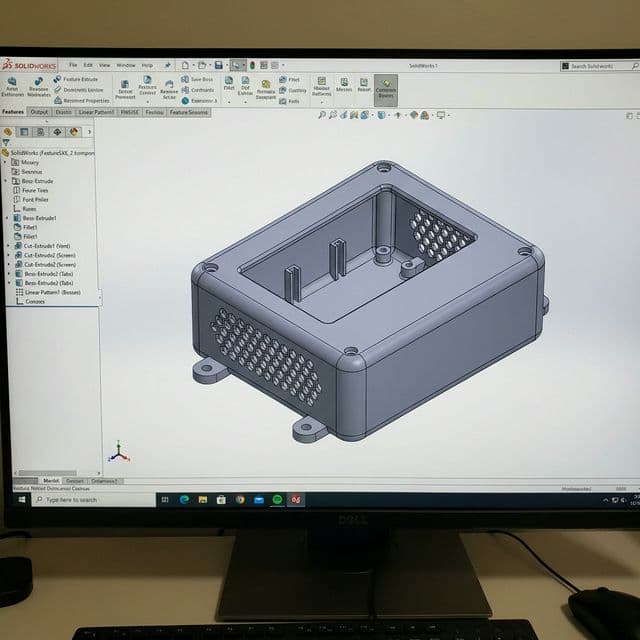

Electronic Enclosure — CAD Design
Custom enclosure with ventilation grilles, display cutout, and internal mounting posts. Modeled in SolidWorks with full parametric feature tree.

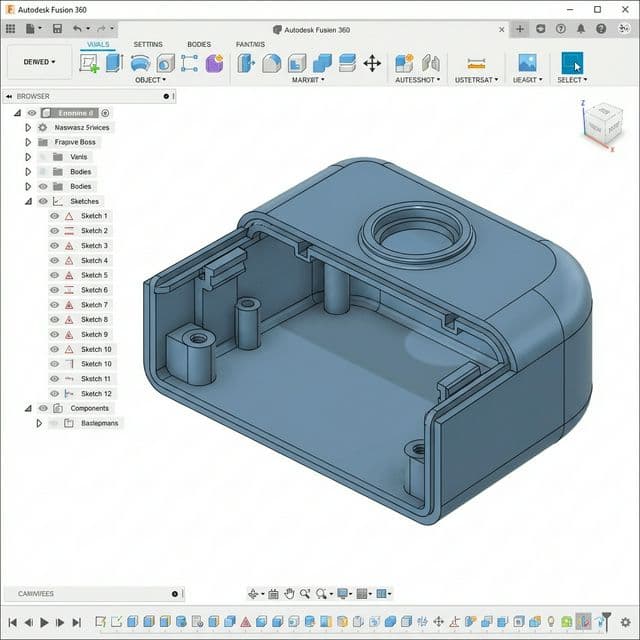

IoT Sensor Housing — Fusion 360
Compact sensor device enclosure with internal PCB standoffs, clip-on lid, and circular sensor window cutout. Cross-section view showing wall thickness and internal feature structure.

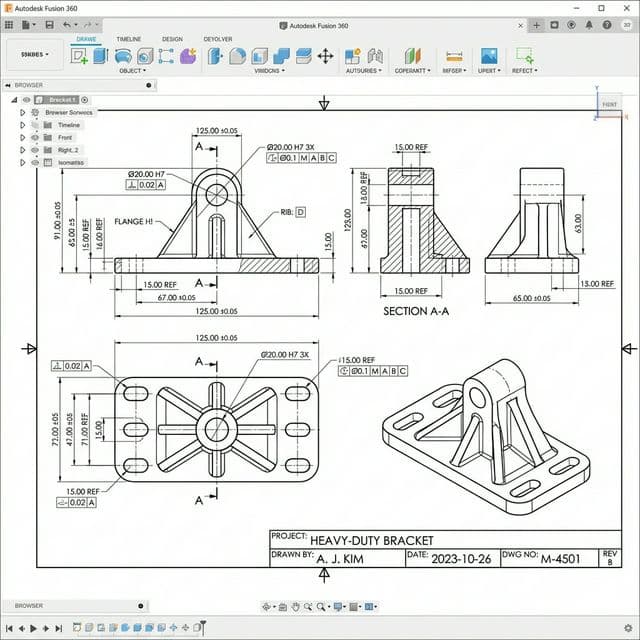

Heavy-Duty Bracket — Technical Drawing
Full engineering documentation with orthographic views, section cuts, GD&T tolerances, and precise dimension annotations. Ready for manufacturing.

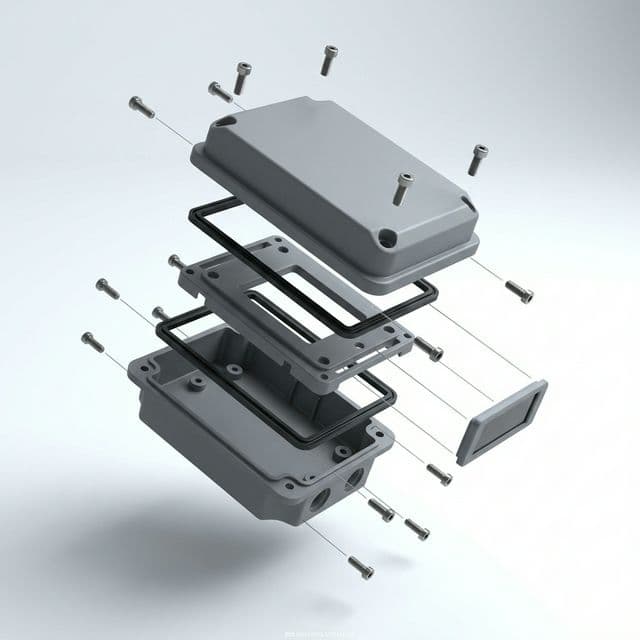

Sensor Housing — Exploded Assembly
Exploded view showing all individual components: top cover, base, gaskets, internal frame, display bezel, and hardware. Designed for IP65 rating.

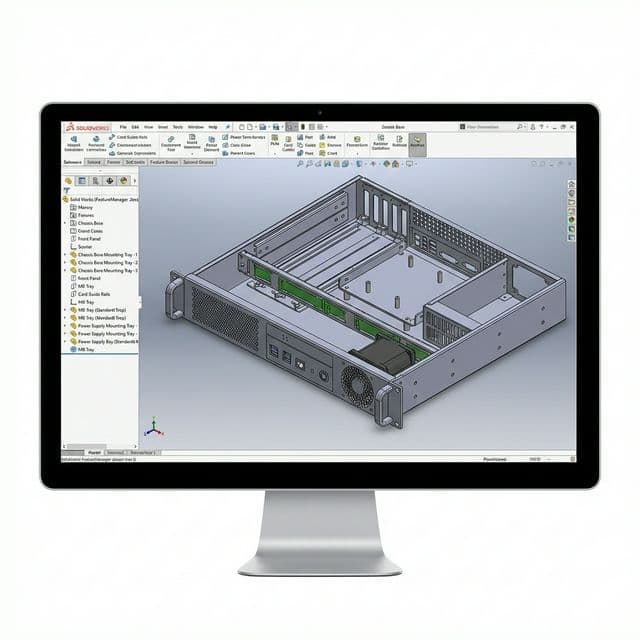

2U Rackmount Chassis — Cutaway View
19-inch server rack chassis with front panel connector cutouts, fan grille patterns, internal card guide rails, motherboard mounting tray, and power supply bay. Section view showing internal structure.
Need a custom 3D model?
From product enclosures to mechanical assemblies — we design it, you manufacture it.
